Sale

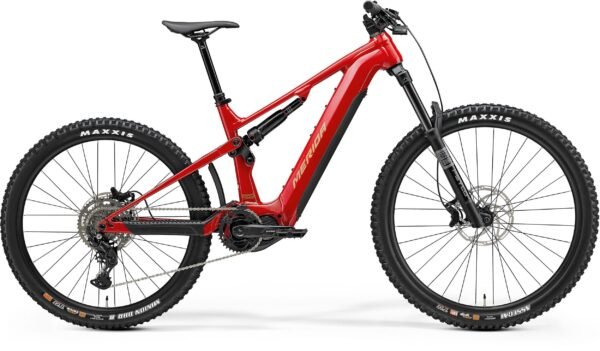

eOne-Sixty SL 8000

Original price was: kr105.000,00.Current price is: kr94.499,00.

The perfect e-enduro machine for riders with an active riding style. A high performance specification package and progressive geometry is paired with the Bosch SX drive unit for an amazing ride feel.

SKU: N/A Categories: , Brand:

Description

Do you like to attack the climbs and combine your active eMTB riding style with the seamless support of a powerful mid-support drivetrain? Then the feature-packed eONE-SIXTY 8000 could be the perfect bike for you. Lightweight CF4 level full carbon fibre frame with 160 mm of front and rear travel, AGILOMETER inspired sizing system, progressive enduro geometry, proven Bosch Performance Line SX drivetrain and lightweight yet enduro-tough components deliver on every trail while maximising the fun factor.

The eONE-SIXTY SL represents a new breed of e-mountain bike, combining the poise of an unassisted bike with the power of a Bosch SX drive unit to help you ride further and faster. With a lightweight full carbon frame, 160 mm of well-balanced travel and a build that blends hard-hitting performance with low weight, it blurs the line between conventional and assisted riding. The eONE-SIXTY SL combines ‘human-powered’ bike handling and enduro tough but lightweight equipment with the latest compact Bosch Performance Line SX motor with 55 Nm, and a fully integrated 400 Wh battery plus an optional 250 Wh range extender for an experience that blurs the line between normal and e-bike. If you are the type of rider who likes to pedal hard and use the assistance for maximum fun on the trail, then the eONE-SIXTY SL should be your next trail and enduro companion.

Additional information

Weight N/A
Frame

Frame size

Color

Shock

Brake System

Sram DB8 Stealth

Rotors

Sram HS2

Headset

Acros ICR MERIDA INTEGRATED neck w/ Blocklock

Handlebar

MERIDA EXPERT eTR

Handlebar Stem

MERIDA EXPERT eTR II

Grips

MERIDA EXPERT EC

Shifters

JD GLS Stealth MMX / Sram AXS Pod Controller

Seat Post

MERIDA COMP TR III

Seatclamp

MERIDA EXPERT

Saddle

Proxim Nembo Steel

Pedals

VP VPE-533

Chain

Sram GX Eagle Transmission

Chainwheel

Sram XX Eagle Transmission E-MTB for BOSCH

Freewheel

Sram GX Eagle Transmission

Rear Hub

Shimano TC500

Front Tyre

Maxxis Assegai, TR EXO+ 3C MaxxGrip

Rear Tyre

Axles

MERIDA EXPERT TR

Front Light

CG-119PG-BLACK(1)

Rear Light

CG-404RG-BLK

Battery

Display

Structural Weight

Fork

Rock Shox Lyric Select+ eMTB

Rear Derailleur

Sram GX Eagle Transmission AXS

Wheelset

DT Swiss HX 1700



Frame Size XShort Short Mid Long XLong
Tyre Sizes 29″ 29″ 29″ 29″ 29″
ST seat tube [mm] 400 410 425 445 465
TT top tube [mm] 543 567 591 616 640
CS chain stay length [mm] 450 450 450 450 450
HTA head tube angle [°] 64 64 64 64 64
STA seat tube angle [°] 78.5 78.5 78.5 78.5 78.5
BD bottom bracket drop [mm] 27.5 27.5 27.5 27.5 27.5
HT head tube [mm] 100 105 110 115 120
FL fork length [mm] 571 571 571 571 571
R reach [mm] 420 443 466 489 512
S stack [mm] 611 616 620 625 629
WB wheel base [mm] 1202 1228 1253 1278 1303
Str Stack To Reach Ratio Pc 1.45 1.39 1.33 1.28 1.23

No. Item-No. Name Info Pieces Torque NM
1 A2300000729 BOLT M6x1 OD15/17mm L69mm 1
2 A2221000040 BEARING 172607V-2RS OD26mm ID17mm W7mm 1
3 A2294000102 WASHER OD21mm ID17.1mm H3mm 1
4 A2294000016 WASHER OD19mm ID15.1mm H3mm 3
5 A2221000043 BEARING 3802V-2RS OD24mm ID15mm W7mm 3
6 A2300000609 SCREW M10x1 L15mm 1 15~17
7 A2300000736 BOLT M6x1 OD10mm L39mm 1
8 A2298000113 SCREW M6x1 L16mm 2 8~10
9 A2294000196 WASHER for M6 sunkenhead screw OD16mm 4
10 A2300000693 BOLT M6x1 OD12mm L62mm 1
11 A2300000737 SCREW M8x1 L49mm 1 18~20
12 A2294000224 LOCK RING for ID21 1
13 A2294000223 WASHER OD12.1mm ID15.5mm H3mm 2
14 A2221000035 BEARING 6801V-2RS OD21mm ID12mm W5mm 2
15 A2031000097 LINK 1
16 A2262000059 WASHER OD15.5mm ID12.1mm H31mm 1
17 A2300000743 SCREW M15x1 L20.5mm 2 23~25
18 A2294000225 LOCK RING for ID24 2
19 A2302000109 NUT M15x1 flipchip 2
20 A2292000141 WASHER OD13mm ID9mm H1mm 1
